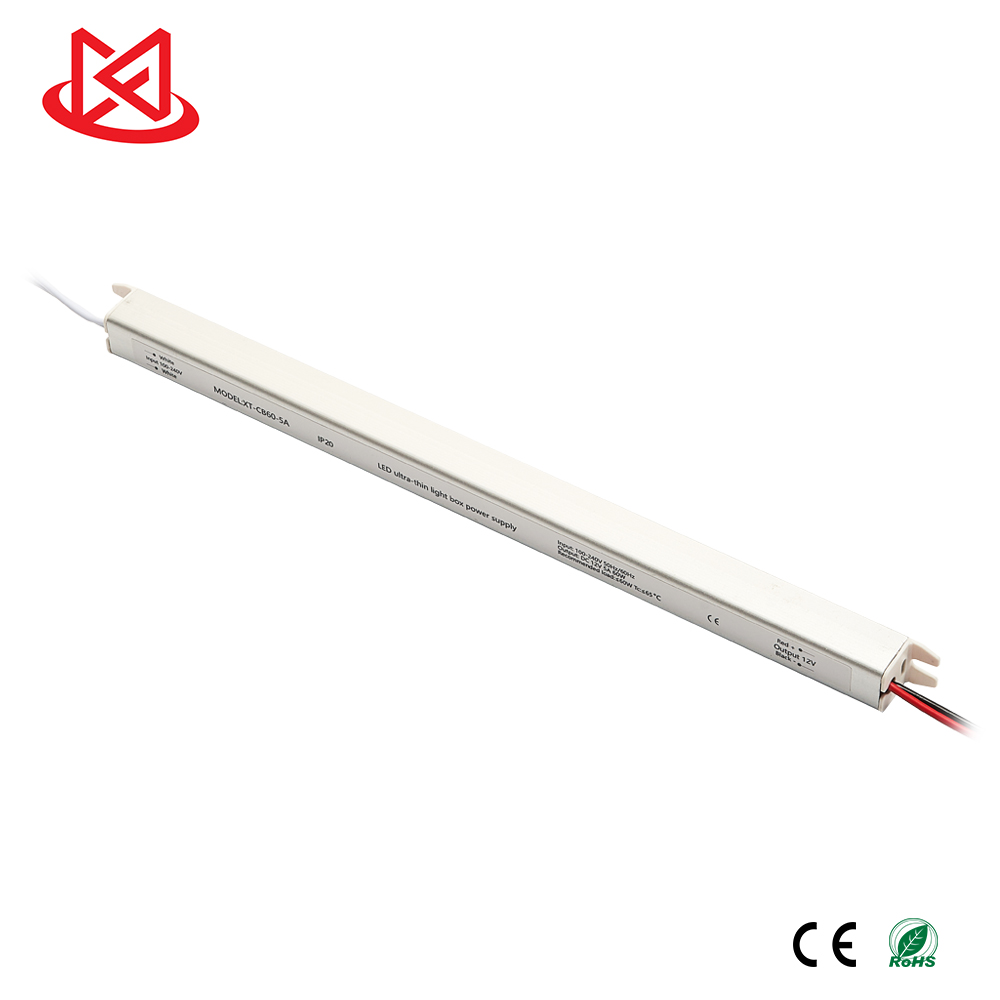

60W (CE&RoHS) Silver Shell Ultra-thin LED Driver

▶ Wide Voltage Design.
▶ Unltra Thin Desgin.
▶ Aluminum shell,IP20,
▶ 100% Full Load Burn-in Test
▶ Certificate: CE ROHS
▶ Over Power/Short Circuit/ Over Voltage/Over Temp Protection

Inquire Online

PRODUCT INFORMATION

▶ Wide Voltage Design.

▶ Unltra Thin Desgin.

▶ Aluminum shell,IP20,

▶ 100% Full Load Burn-in Test

▶ Certificate: CE ROHS

▶ Over Power/Short Circuit/ Over Voltage/Over Temp Protection

Application

Parameters

Model No:		XT-CB60-5A	XT-CB60-2.5A
Output	Rated Output Voltge	12V	24V
	Output Current Range	0-5A	0-2.5A
	Rated Output Power	60W	60W
Input	Input Voltage Range	100-240V	100-240V
	Input Frequency Range	50-60HZ	50-60HZ
	Power Efficency	>82%	>83%
Szie(mm)		3121818	3121818
