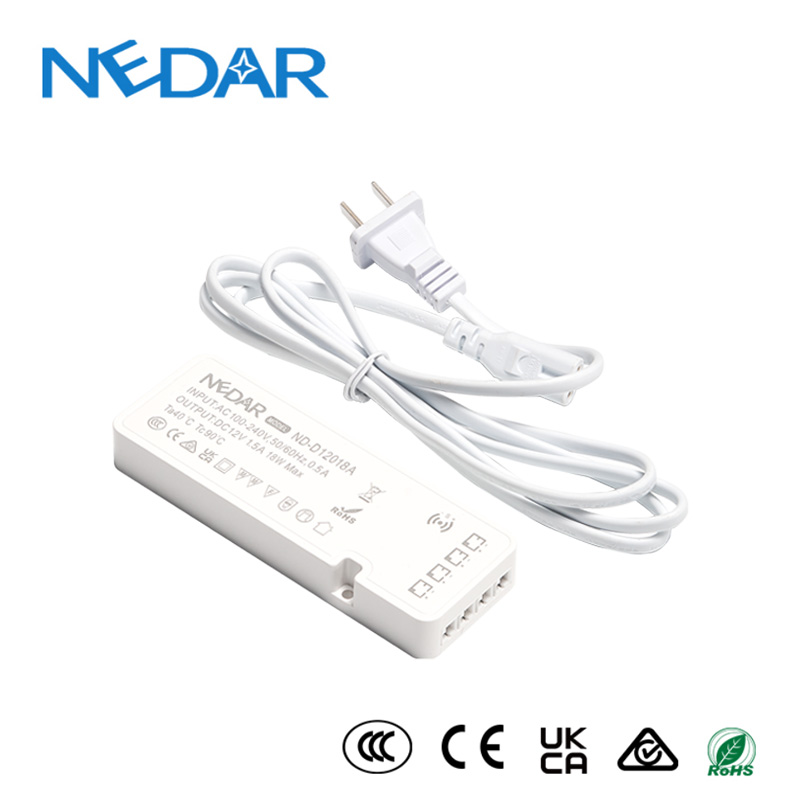

18W (UKCA&RCM&CE) Plastic Cabinet LED Driver

▶ Wide Voltage Design.
▶ Plastic shell,IP20,PF>0.95
▶ 100% Full Load Burn-in Test
▶ Certificate: CE UKCA RCM ROHS
▶ Over Power/Short Circuit/ Over Voltage/Over Temp Protection

Inquire Online

PRODUCT INFORMATION

▶ Wide Voltage Design.

▶ Plastic shell,IP20,PF>0.95

▶ 100% Full Load Burn-in Test

▶ Certificate: CE UKCA RCM ROHS

▶ Over Power/Short Circuit/ Over Voltage/Over Temp Protection

Application

Parameters

Model No:		ND-D12018A	ND-D24018A
Output	Rated Output Voltge	12V	24V
	Output Current Range	0-1.5A	0-0.75A
	Rated Output Power	18W	18W
Input	Input Voltage Range	100-240V	100-240V
	Input Frequency Range	50-60HZ	50-60HZ
	Power Efficency	>85%	>87%
Szie(mm)		1284516	1284516
