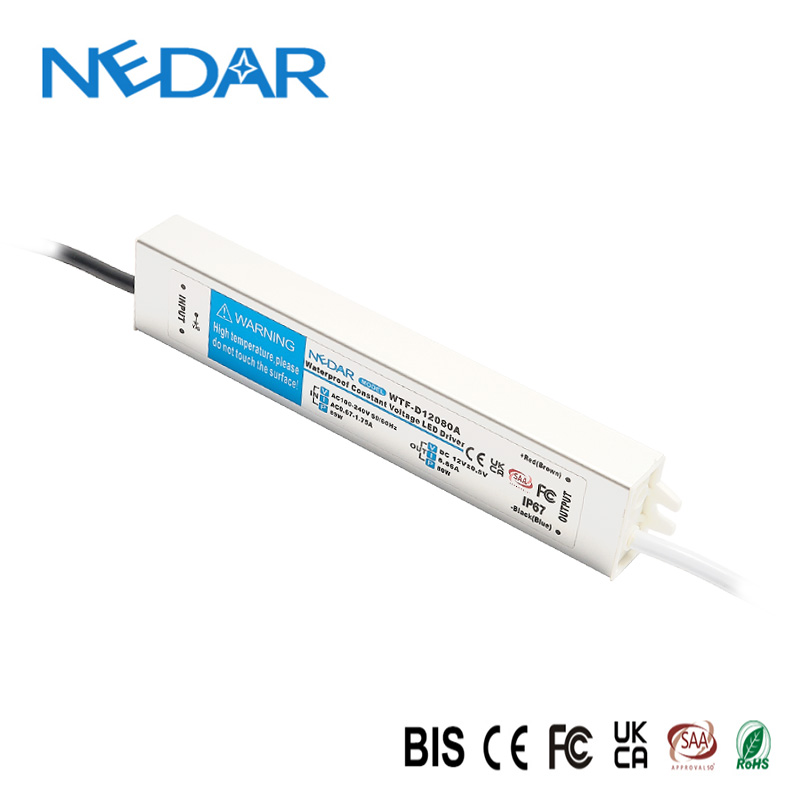

80W (UKCA&SAA&CE) IP67 LED Driver

▶ Extra Wide Voltage Design.
▶ Unltra Thin Desgin.
▶ Aluminum shell,IP67
▶ 100% Full Load Burn-in Test
▶ Certificate:BIS CE FCC UKCA SAA ROHS
▶ Over Power/Short Circuit/ Over Voltage/Over Temp Protection

Inquire Online

PRODUCT INFORMATION

▶ Extra Wide Voltage Design.

▶ Unltra Thin Desgin.

▶ Aluminum shell,IP67

▶ 100% Full Load Burn-in Test

▶ Certificate:BIS CE FCC UKCA SAA ROHS

▶ Over Power/Short Circuit/ Over Voltage/Over Temp Protection



Application

Parameters

Model No:		WTF-D12080A	WTF-D24080A
Output	Rated Output Voltge	12V	24V
	Output Current Range	0-6.66A	0-3.33A
	Rated Output Power	80W	80W
Input	Input Voltage Range	100-240V	100-240V
	Input Frequency Range	50-60HZ	50-60HZ
	Power Efficency	>85%	>87%
Szie(mm)		2004020	2004020
